Product Description
|
Product Model |

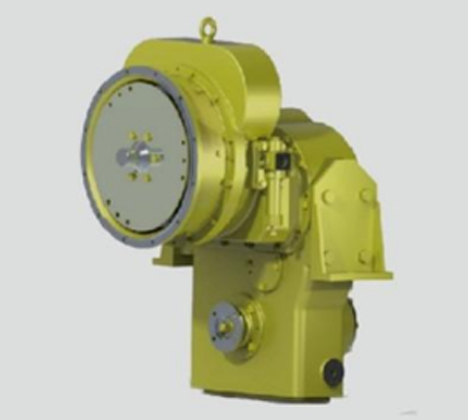

ZL15 Transmission |
|
|
Product Description |
ZL15 transmission is a matching component for Y230 loader and BD2205 loader. It adopts a split structure with a clutch, gearbox, and three-axis structure. The transmission is controlled hydraulically and has the characteristics of reliable performance, convenient operation, compact structure, and long service life. |
|
|
Main technical parameters
|
Maximum Input Power (kW) |
60 |
|
Maximum Input Speed (r/min) |
2600 |
|
|
Maximum Input Torque (Nm) |
620 |
|
|
Gears |
Forward 3 / Reverse 2 |
|
|
Control Method |
Hydraulic control / Manual control |
|
|
Output Shaft Form |
Spiral bevel gear |
|
|
Output Shaft Type |
Left and right, dual output |
|
|
Center Distance (mm) |
427 |
|
|
Product Weight (kg) |
320 |
|
|
Product Dimensions (L×W×H mm) |
705×689×952 |
|
|
Gear Ratio |
Forward 1st gear: 2.469 / Forward 2nd gear: 0.878 / Forward 3rd gear: 0.524 / Reverse: 0.898 |
|
