Product Description
|
Product Model |

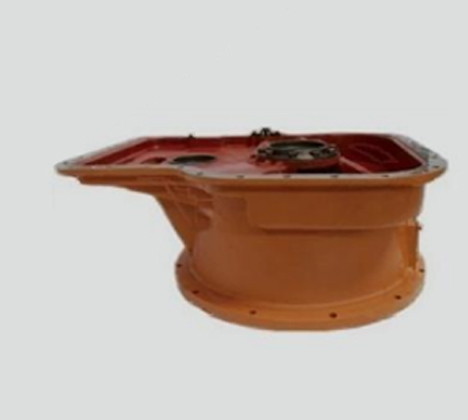

YJSW315-7 Torque Converter Series |
|
|
Product Introduction |
A single-stage dual-turbine torque converter with two-phase operation, matched with a low-speed engine and integrated planetary gearbox, offers a wide efficient range, fast response, high operational efficiency, and low fuel consumption for the entire machine. |
|
|
host want technology technique Ginseng number
|
Circulation circle diameter ( mm ) |
338 |
|
Matching flywheel housing |
Elastic plate center distance: 400mm, stop diameter: 532mm |
|
|
Ko |
4.2±5% |
|
|
ηmax |
≥82% |
|
|
MBgo |
142±5% |
|
|
Output type |
Spline |
|
|
Product Net Weight ( Kg ) |
161.5 |
|
|
Product size – length, width and height (mm) |
734*620*345 |
|
|
Application Host |
5-ton loader |
|
|
Technical consultation hotline |
0537-2909202 |
|
