Product Description
|
Product Model |

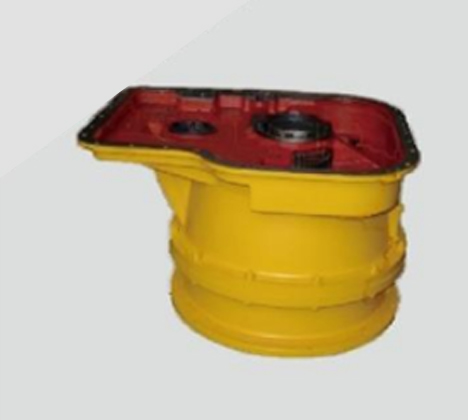

YJSW 315-2 Torque Converter Series |
|
|
Product Introduction |
Single-stage two-phase twin-turbine torque converter, and planetary gearbox Combined box and matching host. High efficiency, wide area, superior performance, reliable quality, Matching the host is energy-saving and efficient. |
|
|
host want technology technique Ginseng number
|
Circulation circle diameter ( mm ) |
315 |
|
Matching flywheel housing |
The center distance of the elastic plate is 400mm, the diameter of the stop is 532mm |
|
|
Ko |
4.5±5% |
|
|
ηmax |
≥80% |
|
|
MBgo |
80±5% |
|
|
Output type |
Spline |
|
|
Product Net Weight ( Kg ) |
200.5 |
|
|
|
Product size – length, width and height (mm) |
734*620*490 |
|
Application Host |
3-ton loader |
|
|
Technical consultation hotline |
0537-2909202 |
|
