Product Description
|
Product Model |

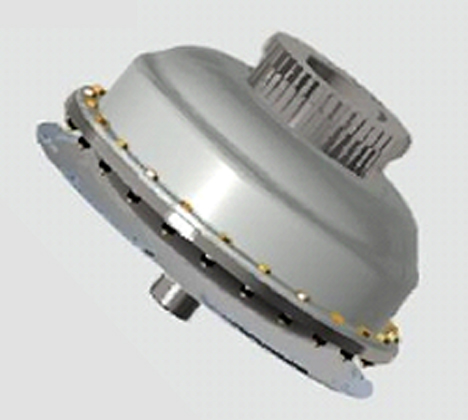

YJSW315 torque converter movement series |
|
|
Product Introduction |
The single-stage, two-phase, twin-turbine torque converter mechanism features a series of performance features, compatible with engines of varying power ratings and paired with a planetary transmission. It is designed for loaders ranging from 3-6 tons and boasts a wide high-efficiency range and strong adaptability, making the entire machine energy-efficient and highly efficient. |
|
|
Main technical parameters
|
Circulation circle diameter (mm) |
315 |
|
Matching flywheel housing |
Center distance between elastic plate holes 400mm |
|
|
Ko |
4-4.6 |
|
|
nmax |
≥82% |
|
|
MBgo |
80-165 |
|
|
Output type |
Spline |
|
|
Product net weight (Kg) |
156 |
|
|
Product size – L×W×H (mm) |
φ424*295 |
|
|
Application Host |
3-6 ton loader |
|
|
