Product Description
|
Product Model |
R335-X38reducer |
|
|
Product Introduction |

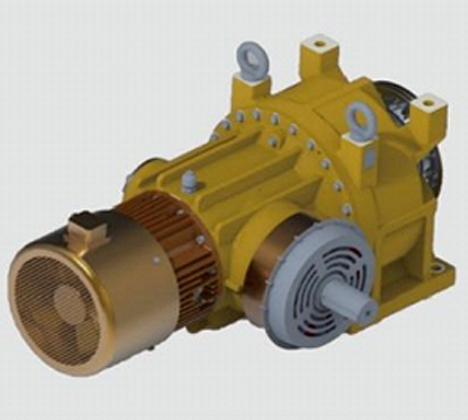

This product is a dedicated reducer for 4-5 cubic meter concrete mixing plant mainframes. It features a right-angle design and three connection ports: input, synchronous, and output. It utilizes a three-stage reduction transmission structure consisting of a cone-shaped bevel gear and a two-stage planetary gear, offering a high transmission ratio and stable operation. Its unique adjustable output disc connection effectively cushions external load impacts and extends product life. |
|
|
Main technical parameters
|
Rated power(KW) |
110 |
|
Rated input speed(r/min) |
1145 |
|
|
Maximum output torque(Nm) |
35000 |
|
|
reduction ratio |
38 |
|
|
Deceleration form |
Cone umbrella + secondary planet |
|
|
Installation type |
Base type |
|
|
Output type |
Adjustable coupling |
|
|
Product Net Weight(Kg) |
846 |
|
|
Product size – length, width and height(mm) |
1350*1000*600 |
|
|
Application Host |
4-5 cubic meter concrete mixing station mixing host |
|
|
