Product Description
|
Product Model |

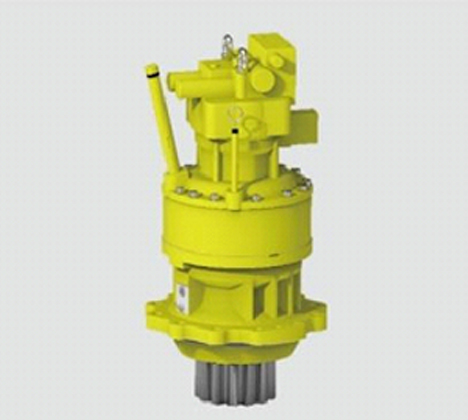

R211-X2099A Reducer |
|
|
Product Introduction |
The slewing reducer for 20-22 ton excavators adopts a two-stage planetary gear structure, with sun gear input and planetary carrier output. The gears adopt the reinforced shot peening process, and the slewing motor adopts the domestic mainstream configuration with strong versatility. |
|
|
Main technical parameters
|
Rated power(KW) |
91 |
|
Rated input speed(r/min) |
1650 |
|
|
Maximum output torque(Nm) |
10500 |
|
|
reduction ratio |
20.01 |
|
|
Deceleration form |
Secondary planets |
|
|
Installation type |
Flange type |
|
|
Output type |
Gear output |
|
|
Product Net Weight(Kg) |
223 |
|
|
Product size – length, width and height(mm) |
780*410*410 |
|
|
Application Host |
20-22 ton excavator |
|
|
