Product Description
|
Product Model |
BD4323-B2 Transmission |
|
|
Product Description |

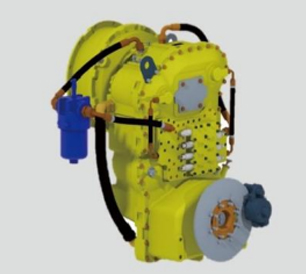

The BD4323-E2 is a fixed-axis, electro-hydraulic proportional-control powershift transmission with a compact design. Its output is bidirectional via flanges, enabling bidirectional drive. A PTO port is reserved for a hydraulic pump. The parking brake is hydraulically controlled, spring-applied and hydraulically released, making it simpler, more reliable, and easier to operate than traditional mechanically operated drum brakes, facilitating automated control. The output is bidirectional, enabling dual-drive operation. The center drop between the input and output is 580mm, meeting the design requirements for a wide drop. |
|
|
Main technical parameters
|
Maximum Transmission Power(kW) |
230KW |
|
Maximum Input Speed(r/min) |
2600rpm |
|
|
Maximum Output Torque (Nm) |
2050Nm |
|
|
Gears |
4 Forward / 3 Reverse |
|
|
Control Method |
Forward 1st: 4.150 | Reverse 1st: 3.937 |
|
|
|
Forward 2nd: 2.089 | Reverse 2nd: 1.981 |
|
|
|
Forward 3rd: 1.072 | Reverse 3rd: 1.017 |
|
|
|
Forward 4th: 0.636 |
|
|
Shifting Mode |
Electro-hydraulic proportional semi-automatic shifting |
|
|
Input Type |
Torque Converter |
|
|
Output Type(mm) |
Output Flange, Bidirectional |
|
|
Center Distance (mm)) |
530 |
|
|
Product Weight (Kg) |
629 |
|
|
Product Dimensions (L×W×H mm) |
1027*1029*590 |
|
|
Application Host Machine |
This product is primarily used in 7-ton loaders. |
|
|
Technical Support Phone |
0537-2909171 |
|
