Product Description
|
Product Model |

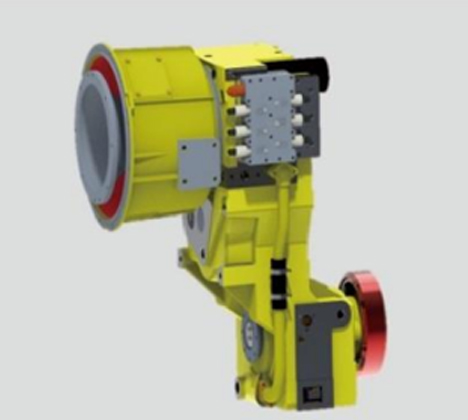

BD4320-Y2 Transmission |
|
|
Product Description |
BD4320-Y2 transmission adopts a modular design with a split structure. It consists of a clutch, gearbox, and three-shaft structure. The transmission integrates hydraulic torque converter, hydraulic power shift, and hydraulic retarder. It features reliable performance, easy operation, high transmission efficiency, and compact structure. The output shaft height is 555 mm, suitable for flexible equipment layout. |
|
|
Main technical parameters
|
Maximum Input Power (kW) |
170 |
|
Maximum Input Speed (r/min) |
2600rpm |
|
|
Maximum Input Torque (Nm) |
1600Nm |
|
|
Gears |
Forward 4 / Reverse 3 |
|
|
Gear Ratios |
Forward 1st gear / Reverse 1st gear: 4.166 |
|
|
|
Forward 2nd gear / Reverse 2nd gear: 2.594 |
|
|
|
Forward 3rd gear / Reverse 3rd gear: 1.178 |
|
|
|
Forward 4th gear: 0.672 |
|
|
Control Method |
Electro-hydraulic automatic / semi-automatic shifting |
|
|
Input Type |
Torque converter input |
|
|
Output Shaft Type |
Left and right output, bidirectional |
|
|
Center Distance (mm) |
555 |
|
|
Product Weight (kg)) |
485 |
|
|
Product Dimensions (L×W×H mm) |
920x600x1050 |
|
|
Application |
This transmission can be applied to 6-ton loaders, 18–20 ton forklifts, and various mining engineering transport vehicles. |
|
|
Technical Consultation Phone |
0537-2909171 |
|
