Product Description
|
Product Model |

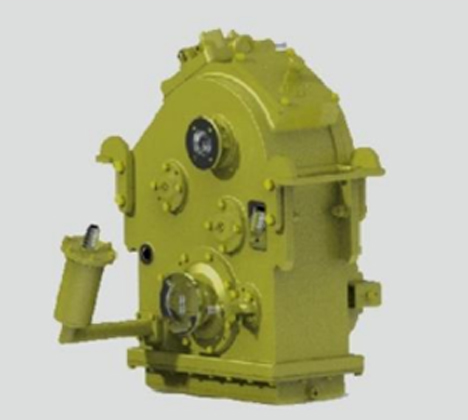

BD4208-Y gearbox |
|
|
Product Introduction |
The BD4208-Y gearbox is a fixed-axis multi-speed gearbox with 4 forward gears, 2 reverse gears, hydraulic control shifting, and high and low gear parking fork shifting. It has the advantages of compact structure, reliable operation, high transmission efficiency and long service life. |
|
|
main Technical Reference number |
Maximum transmission power ( KW ) |
88 |
|
Maximum input speed (r/min) |
2500 |
|
|
Maximum input torque ( Nm ) |
1000 |
|
|
Gear |
Four in front and two in back |
|
|
Gear shifting method |
Machine-controlled valve shifting/shift fork switching high and low gears |
|
|
Input Type |
flange |
|
|
Output type |
Flange, double output |
|
|
Installation distance ( mm ) |
380.3 |
|
|
Product Net Weight ( Kg ) |
370 |
|
|
Product size – length, width and height (mm) |
762×426×858 |
|
|
Two speed ratios available |
Forward first gear: 3.82 Forward second gear: 2.08 Forward third gear: 1.09 Forward 4th gear: 0.59 Reverse 1st gear: 3.05 Reverse 2nd gear: 0.87 |
|
|
Forward first gear: 3.46 Forward second gear: 1.81 Forward third gear: 1.09 Forward 4th gear: 0.57 Reverse 1st gear: 2.65 Reverse 2nd gear: 0.84 |
||
|
Application Host |
3-ton loader |
|
|
