Product Description
|
Product Model |

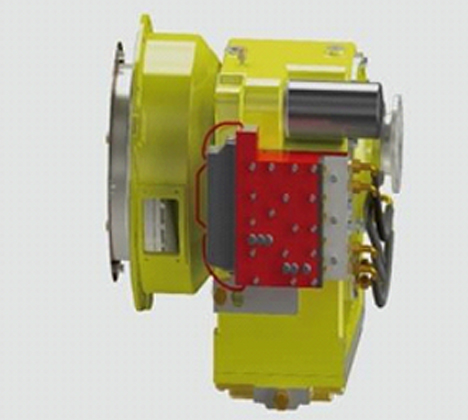

BD6313-E2Eransmission |
|
|
Product Introduction |
The BD6313-E2 transmission consists of a gearbox and a torque converter. It’s a fixed-shaft transmission with electro-hydraulic powershift control. The torque converter offers a variety of performance parameters, allowing you to select the optimal parameters based on different engine characteristics. The transmission’s operating pressure oil is supplied by a built-in pump, and two power take-off ports are reserved. |
|
|
Main technical parameters
|
Maximum transmission power(KW) |
130 |
|
Transmission maximum input speed(/mm) |
2600 |
|
|
Maximum output torque of turbine shaft(Nm) |
1000 |
|
|
Gear |
6 in front and 3 in back |
|
|
Gear shifting method |
Electro-hydraulic power shift |
|
|
Input Type |
Flywheel housing direct connection |
|
|
Output type |
Front and rear flanges |
|
|
Installation distance reduction(mm) |
500 |
|
|
Product Net Weight(Kg) |
395 |
|
|
Product size – length, width and height(mm) |
735×523×909 |
|
|
speed ratio |
Forward 1st gear: 5.9, Forward 2nd gear: 3.78, Forward 3rd gear: 2.3, Forward 4th gear: 1.47, Forward 5th gear: 0.96, Forward 6th gear: 0.62, Reverse 1st gear: 5.9, Reverse 2nd gear: 2.3, Reverse 3rd gear: 0.96 |
|
|
Application Host |
140/160 HP motor grader |
|
|
