Product Description
|
Product Model |

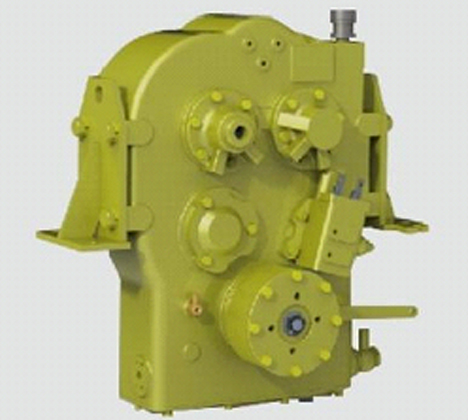

BD2206-Y gearbox |
|
|
Product Introduction |
The BD2206-Y transmission is a multi-speed power-shift transmission with fixed-axis design, featuring 2 forward gears and 2 reverse gears. It offers optional electro-hydraulic or hydraulic control, with advantages including high torque transmission and superior safety factor. |
|
|
main Technical Reference number
|
Maximum transmission power ( KW ) |
65 |
|
Maximum input speed (r/min) |
2600 |
|
|
Maximum input torque ( Nm ) |
800 |
|
|
Gear |
Four in front and two in back |
|
|
Gear shifting method |
Mechanical-hydraulic control / Electro-hydraulic control |
|
|
Input Type |
flange |
|
|
Output type |
Flange, double output |
|
|
Installation distance ( mm ) |
427 |
|
|
Product Net Weight ( Kg ) |
240 |
|
|
Product size – length, width and height (mm) |
705×464×730 |
|
|
Two speed ratios available
|
Forward first gear：2.154 Forward second gear：0.768 Reverse 1st gear：2.207 Reverse 2nd gear：0.785 |
|
|
Forward first gear：2.469 Forward second gear：0.878 Reverse 1st gear：2.524 Reverse 2nd gear：0.898 |
||
|
Forward first gear：2.830 Forward second gear：1.007 Reverse 1st gear：2.893 Reverse 2nd gear：1.029 |
||
|
Application Host |
1.5-2 ton loaders, personnel carriers, and rock drill rigs,etc. |
|
|
Technical consultation hotline |
0537-2909175 |
|
