Product Description
|
Product Model |

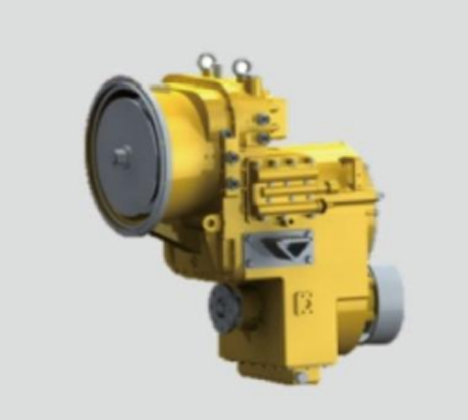

BD2115-Y2 Hydraulic Power Transmission |
||
|
Product Description |
BD2115-Y2 hydraulic power transmission adopts an integrated structure of double turbines and double planetary gear sets. It is equipped with a large torque converter and automatic transmission, which can automatically adjust working conditions to achieve optimal operation. According to engineering machinery requirements, the hydraulic power transmission can be matched with corresponding axles to provide flexible and efficient operation, saving fuel and adapting to various working conditions. |
||
|
Main technical parameters
|
Rated Input Power (kW) |
162 |
|
|
Rated Input Speed (r/min) |
2000/2200 |
||
|
Maximum Input Torque (Nm) |
2700 |
||
|
Gears |
Forward 2 / Reverse 1 |
||
|
Control Method |
Hydraulic control |
||
|
Clutch Type |
Wet clutch |
||
|
Output Shaft Type |
Left and right, dual output |
||
|
Center Distance (mm) |
572.5 |
||
|
Product Weight (kg) |
780 |
||
|
Product Dimensions (L×W×H mm) |
1200*1000*800 |
||
|
FI gear ratio |
2.444 |
2.547 |
|
|
F¹Ⅱ gear ratio |
0.656 |
0.683 |
|
|
R gear ratio |
1.788 |
1.864 |
|
|
Application |
Engineering machinery, loaders, tractors, etc. |
||
|
